EIZO RadiForce MX194 Clinical Review 1 Megapixel Monitor

EIZO RadiForce MX194 Clinical Review 1 Megapixel

** สอบถามราคาสินค้าผ่านทาง Line หรือ Facebook ก่อนสั่งซื้อทุกครั้ง **

19-inch, 1 megapixel monitor with DICOM Part 14 calibration for viewing DSA, CT, and MRI.

Excellent image quality for ultra-sharp details

Featuring a VA panel, the MX194 achieves a high contrast ratio of 2000:1. This is crucial for achieving crisp images with deep black tones and high colour differentiation. The monitor is able to offer excellent image quality thanks to a high resolution of 1.3 Megapixels (colour) and a stable brightness of up to 350 cd/m2. Even the finest details are presented in a differentiated manner,
no matter from which viewing angle the monitor is viewed. This is a great advantage when several doctors are looking at the same screen.

One billion colour tones thanks to 13 bit LUT

Colour rendering is controlled by a 13 bit look-up table (LUT), up to 10 bits of which are available in the DisplayPort connection. This produces a resolution with a maximum of 1 billion colour tones. The rendering characteristic and fine structures required for diagnostics can therefore be precisely identified.

Uniform brightness and high colour purity

The monitor shines thanks to its high colour purity and uniform illumination. This is down to the Digital Uniformity Equalizer (DUE), which corrects imbalances automatically, pixel by pixel. Grey and colour tones of radiological and other medical images are correctly rendered over the entire display. This is vital for diagnostics.

                                     Without DUE                                                                   With DUE

Extended durations of use thanks to automatic shut down

The monitor has an automatic shut down option for the backlight (backlight saver). This extends the duration of use. Similar to a screen saver, the LEDs turn off when the screen is not being used.

FlexStand: ergonomic base

The base allows the monitor to be tilted and turned, as well as operated in landscape or portrait form. The seamless height adjustment starts from the very bottom on the desk. This guarantees optimal ergonomics, regardless of whether you are standing or sitting in front of the screen. Despite its maximum movement possibilities, the FlexStand base always remains completely stable.

One monitor, many ports

It doesn't get easier than this: You can connect most of your devices, such as PC, laptop or cameras directly to the monitor because the monitor has a number of different ports. That makes your daily work easier.

USB

Video

Clinical review monitor: Cost-efficient with DICOM® standard

For environments in which clinical images are reviewed with applications for electronic patient files, the MX194 provides a cost-efficient solution, which supports the DICOM® standard and enables significant savings.

Display of DICOM® characteristic at the press of a button

EIZO measures and adjusts each tone of grey carefully so that the monitors comply with the DICOM® standard when delivered from the factory. The result is a particularly consistent gradation of grey tones, allowing for optimal radiological clinical reviews.

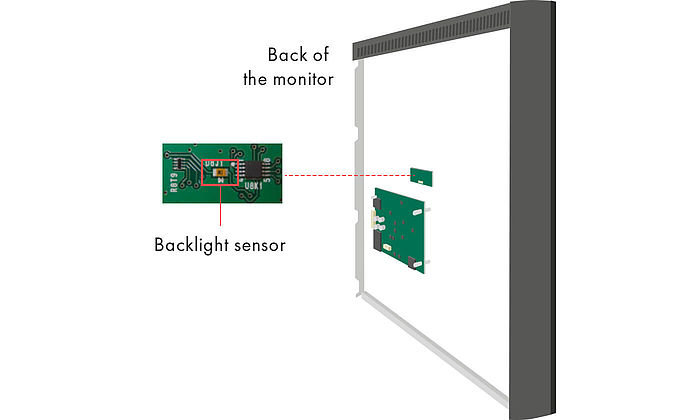

Constant brightness during operation

A sensor for the backlight permanently determines the luminance of the monitor. The benefit: The defined and calibrated values are rendered exactly just seconds after the monitor is turned on and remain constant during the entire period of use. The sensor is invisibly integrated in the monitor.

For precise diagnoses: EIZO graphics card MED-XN51LP

The EIZO MED-XN51LP graphics card supports the properties, functions, and settings of the RadiForce MX194 optimally. It enables precise diagnostics and can control several monitors simultaneously. EIZO offers technical support and a warranty service for all graphics cards. Therefore, we recommend using EIZO graphics cards.
